NeuroRVQ: Multi-Scale Biosignal Tokenization for Generative Foundation Models

Abstract

Biosignals such as electroencephalography (EEG), electrocardiography (ECG), and electromyography (EMG) encode physiological activity across multiple temporal and spectral scales, yielding representations that are rich but challenging for machine learning. Foundation models trained to predict masked signal tokens have shown promise in learning generalizable biosignal representations, yet their performance depends on the tokenizer's ability to preserve high-frequency dynamics and reconstruct signals with high fidelity. We introduce NeuroRVQ, a modality-adaptive biosignal tokenizer family designed for high-fidelity signal reconstruction. To capture the full frequency spectrum, NeuroRVQ decomposes biosignals into frequency-specific representations via multi-scale temporal convolutions, each encoded into hierarchical RVQ codebooks to preserve high-frequency detail, combined with a novel phase-aware training loss that respects the circular topology of Fourier phase. By tuning the temporal resolution, number and size of temporal kernels and RVQ depth, this design adapts to the spectro-temporal characteristics of each biosignal modality. To validate that tokenizer quality drives downstream performance, we train a simple masked-token foundation model for each modality (NeuroRVQ-FM) using the corresponding NeuroRVQ tokenizer. The NeuroRVQ-FM family achieves competitive or superior downstream performance compared to existing modality-specific foundation models, demonstrating that high-fidelity tokenization is a critical factor for effective biosignal modeling.

Method

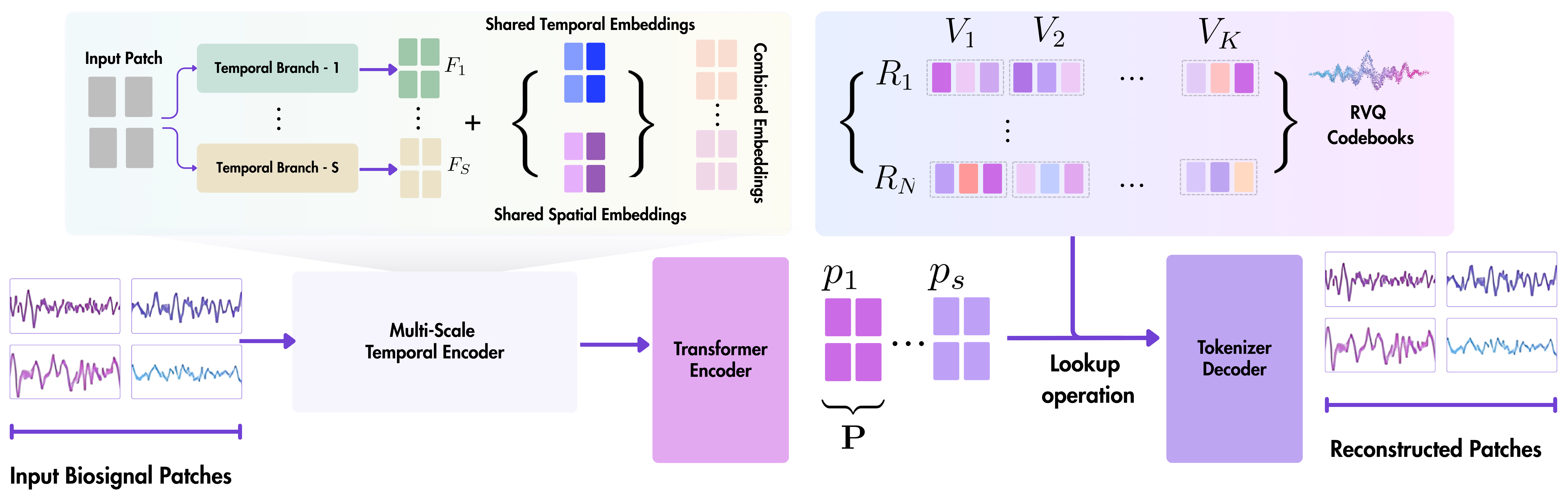

The NeuroRVQ Tokenizer converts raw biosignals into compact and informative neural tokens. The input multi-variate time series is segmented into patches, encoded by the multi-scale temporal encoder at multiple resolutions, combined via a transformer encoder, then discretized into neural tokens through per-scale RVQ codebooks. Tokens are decoded to reconstruct the input patches using the Fourier spectrum.

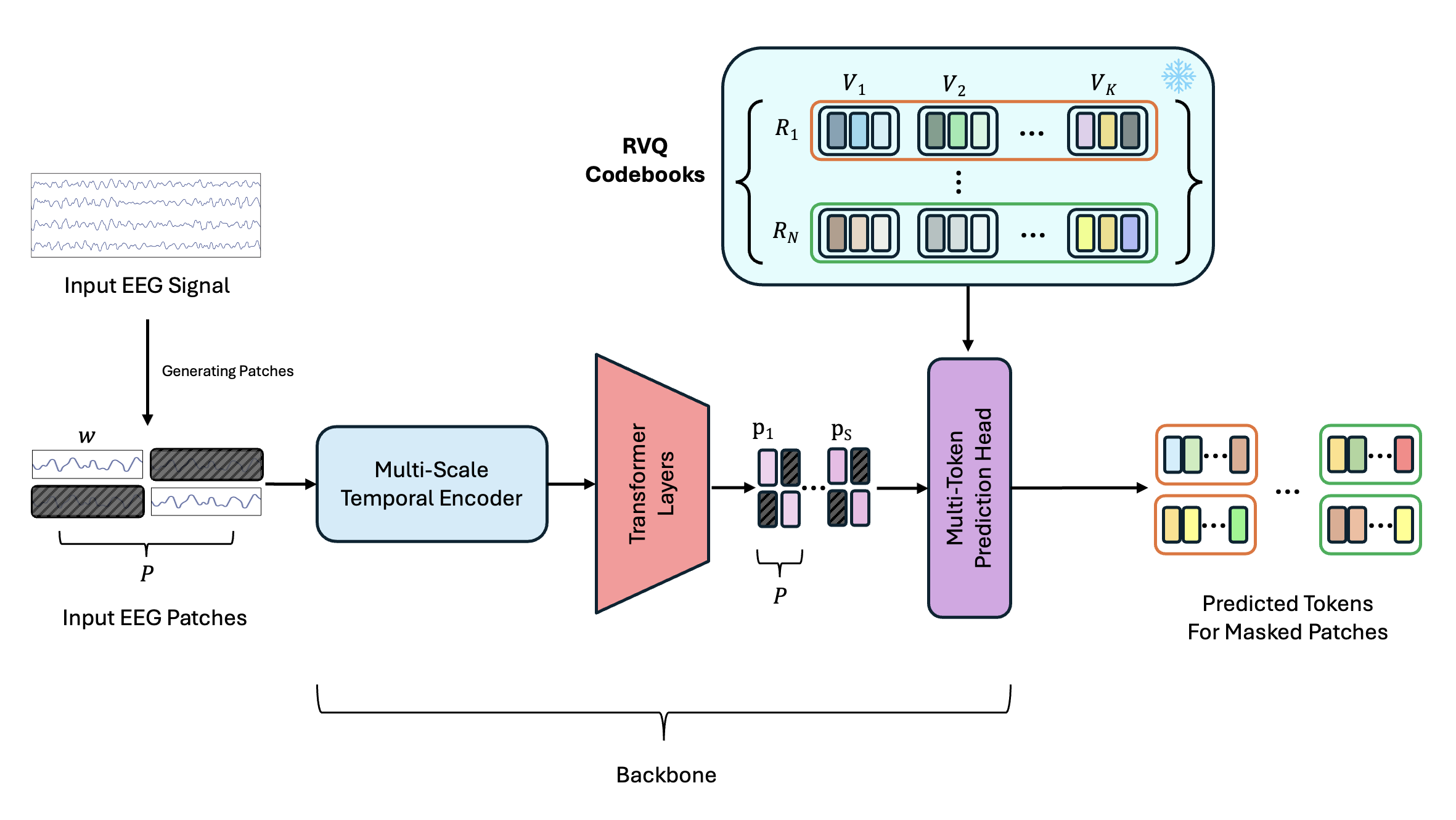

The NeuroRVQ Foundation Model operates on the tokenized representation, using masked-token prediction with symmetric masking. By working at the token level, it captures long-range dependencies, learns abstract neural dynamics, and enables efficient pre-training across diverse biosignal datasets. The learned codebooks serve as prediction targets during pre-training, and the resulting representations transfer effectively to a range of downstream BCI tasks.

Phase-Aware Training Loss

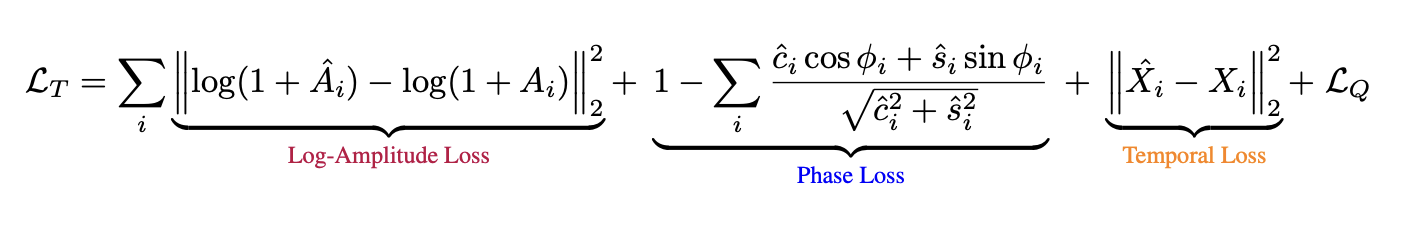

Architecture alone does not account for NeuroRVQ's reconstruction gains — the training loss is equally critical. The tokenizer is trained end-to-end with a composite objective operating in the Fourier domain that combines three complementary components: a log-amplitude loss that compresses dynamic range and emphasizes high-frequency content, a novel phase loss based on cosine similarity that respects the circular topology of Fourier phase angles, and a temporal-domain regularization term.

Component Ablation Study

Starting from a simple baseline (single branch, single codebook, naive MSE on phase and amplitude), each NeuroRVQ component is added incrementally. The phase-aware loss delivers the largest single improvement, and the full combination achieves up to a 43× reduction in reconstruction error.

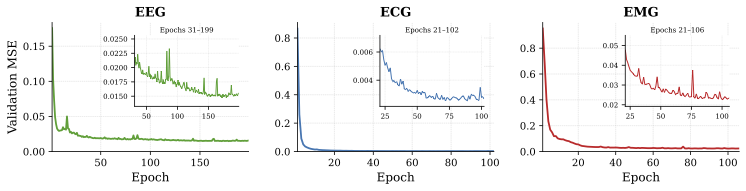

Validation MSE averaged over the last 10 training epochs. The full NeuroRVQ configuration (row 5) achieves a 43× reduction for EEG, 17× for ECG and 4.5× for EMG relative to the baseline.

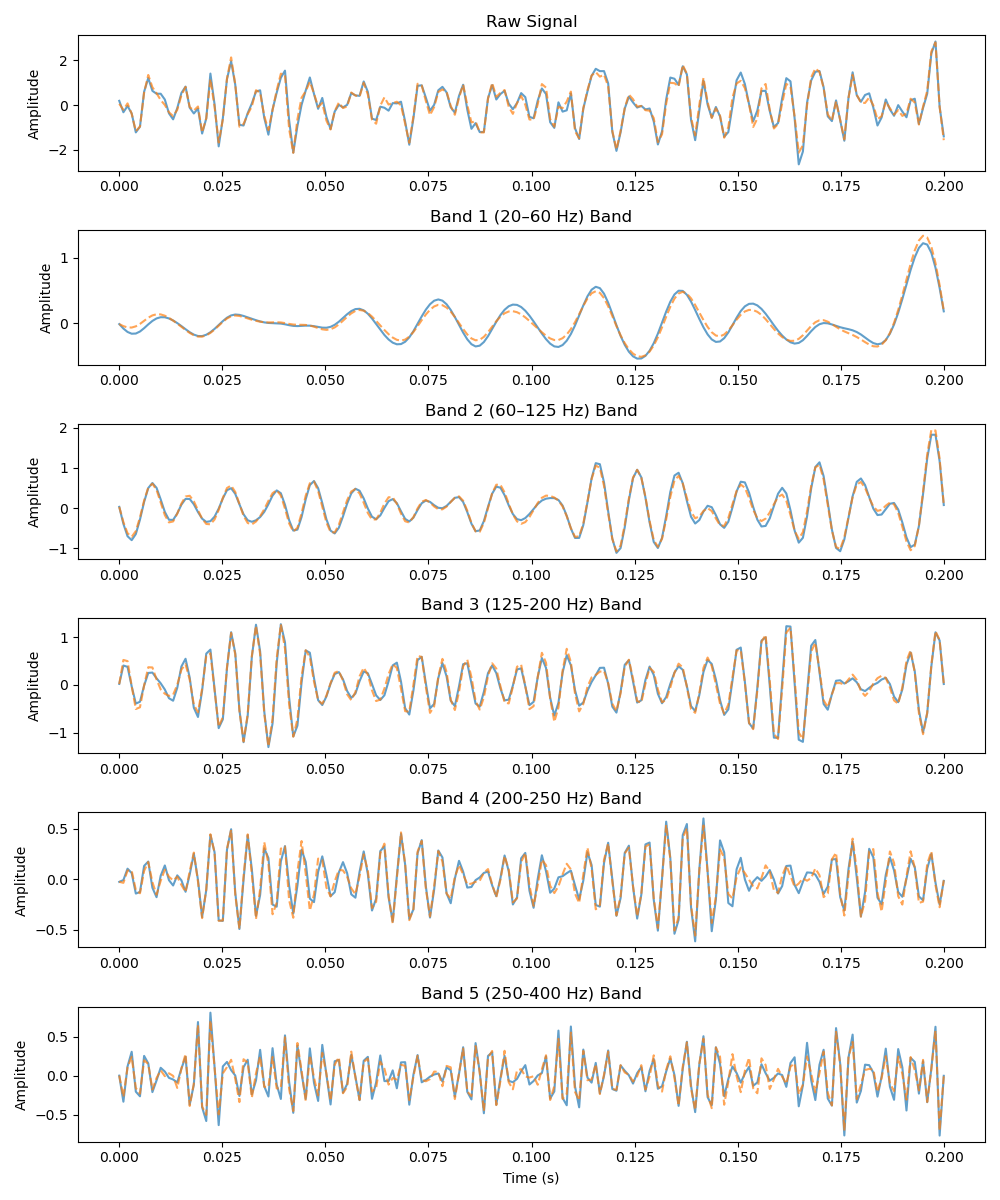

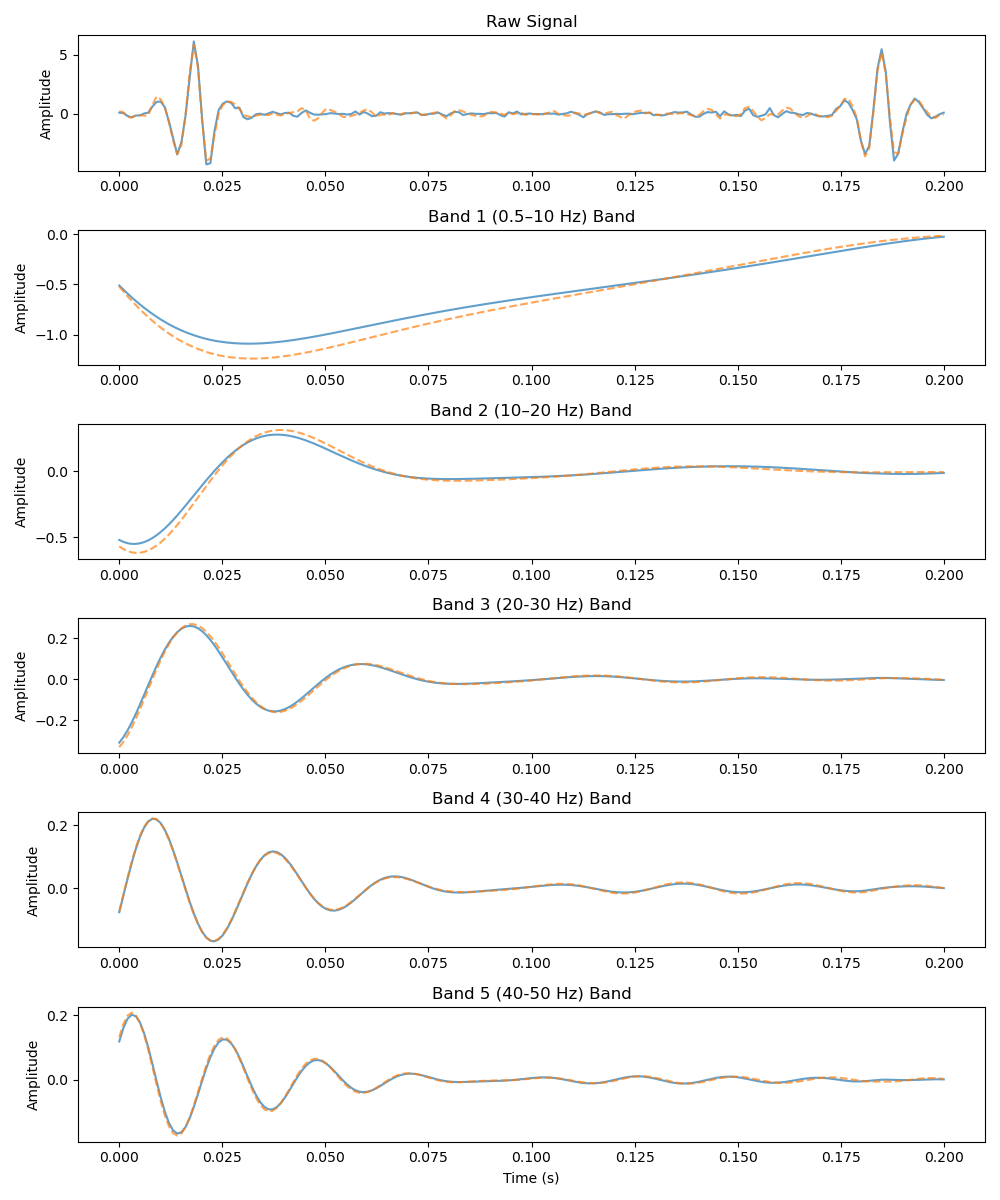

Reconstruction Quality

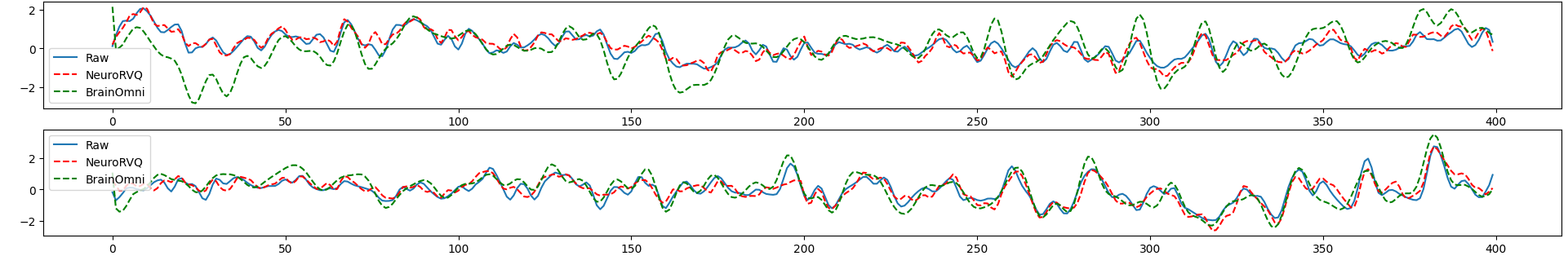

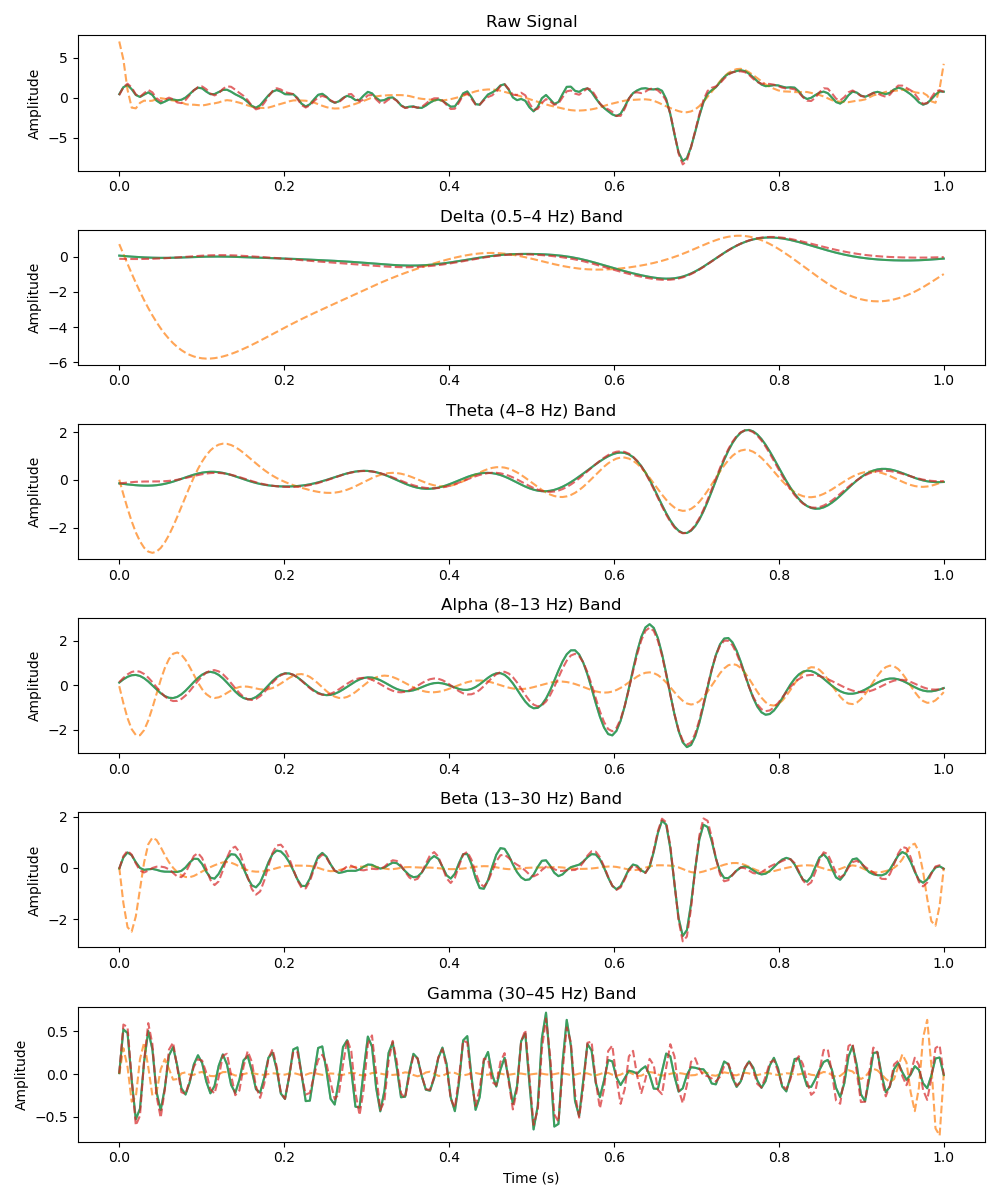

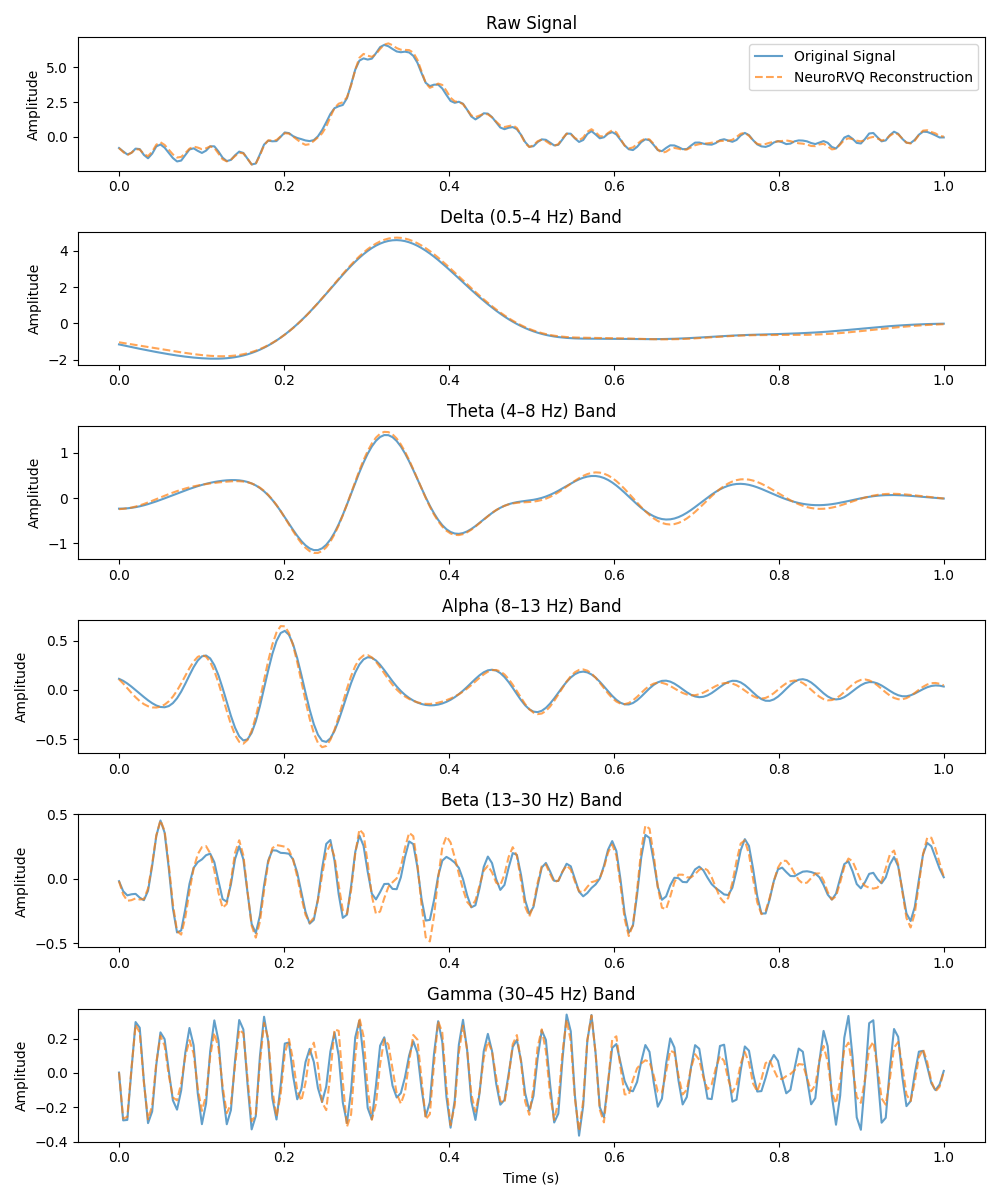

Per-band analysis of reconstructed EEG signals. NeuroRVQ faithfully preserves waveform morphology across all frequency bands, while existing tokenizers lose high-frequency detail.

Reconstruction Examples

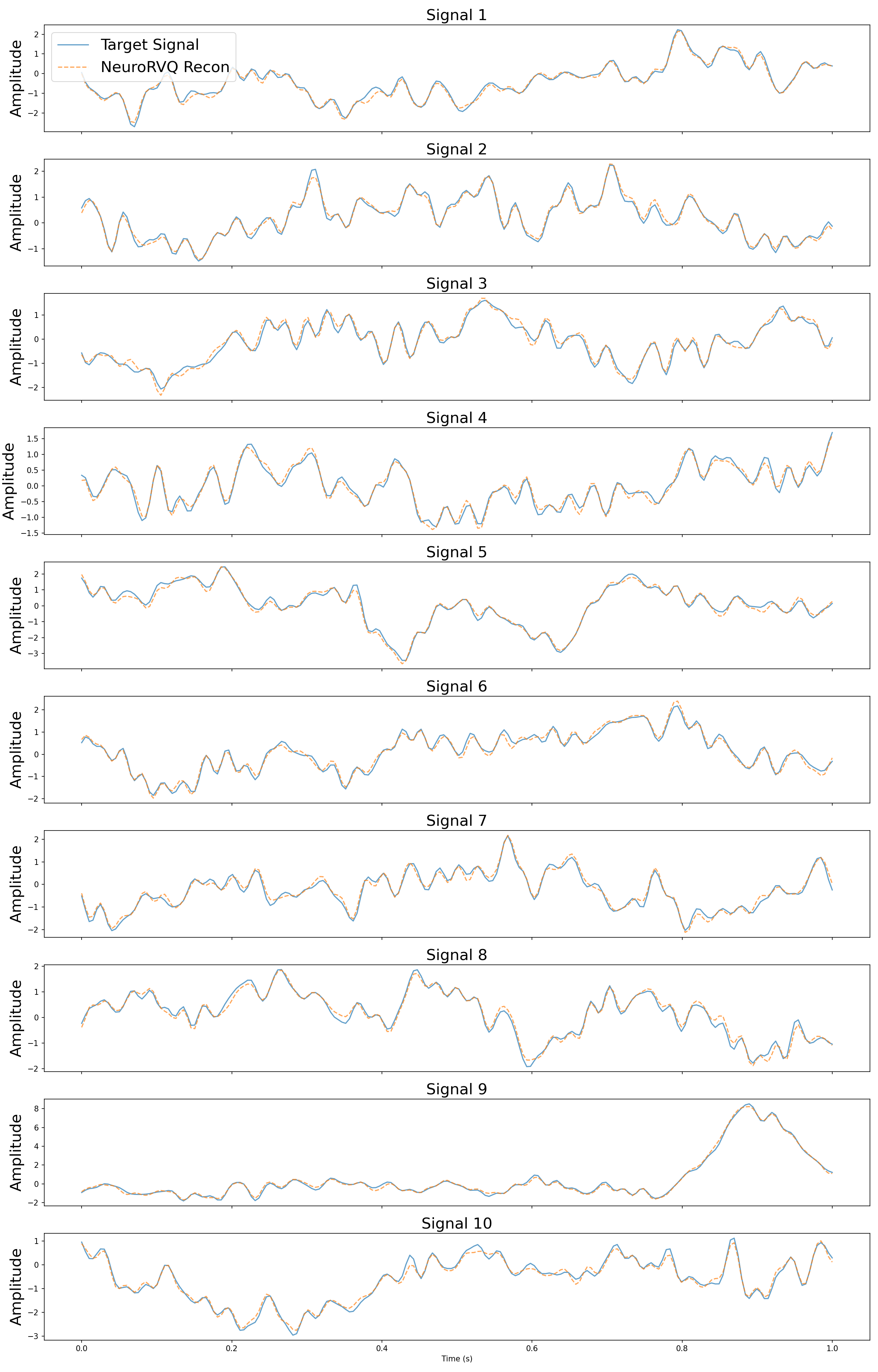

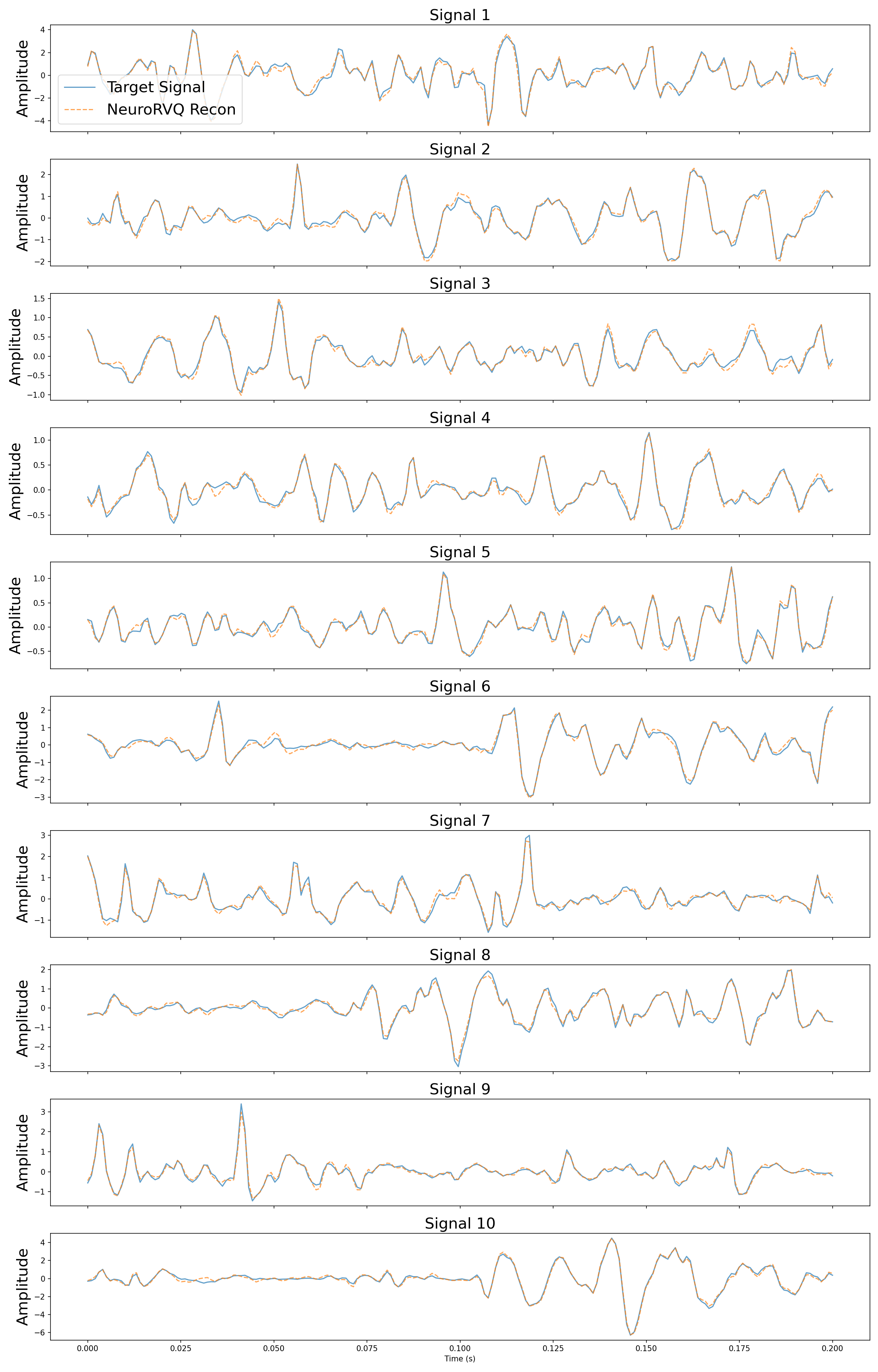

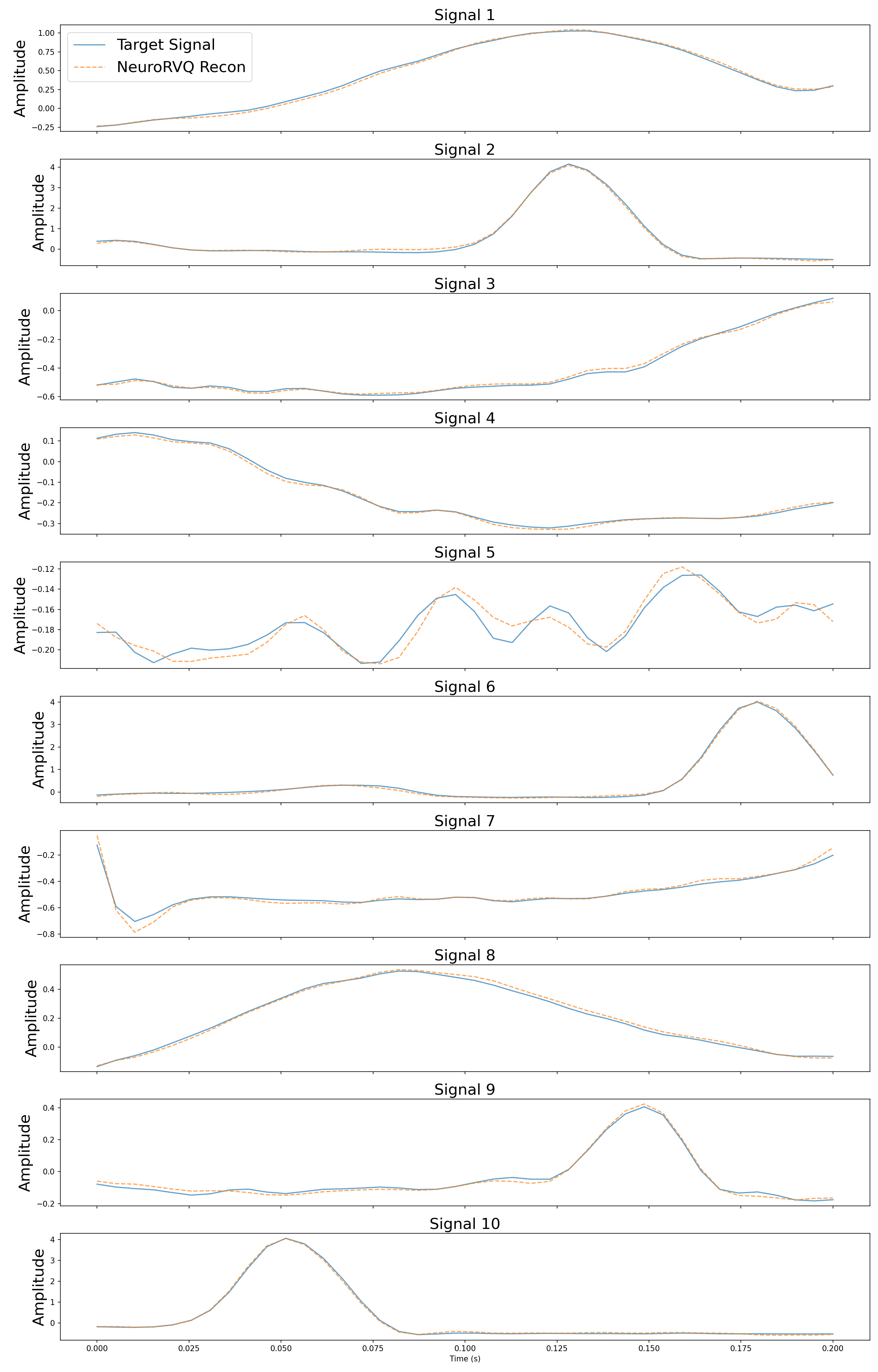

Sample reconstructed signals from the validation set using the NeuroRVQ tokenizer across all three modalities. Blue lines denote the input signal and orange the reconstructed signal.

Downstream Performance

EEG Downstream Performance

NeuroRVQ achieves state-of-the-art performance on five BCI downstream tasks, outperforming the next-best model by over 4 percentage points in mean balanced accuracy. Results are based on a rigorous subject-independent cross-validation benchmark.

Benchmark from Assessing the Capabilities of Large Brainwave Foundation Models (IEEE MLSP 2025).

ECG Downstream Performance

NeuroRVQ-ECG achieves high balanced accuracy on both PTB-XL settings, doubling the balanced accuracy of HuBERT-ECG on the fine-grained 43-class task and substantially outperforming all baselines where class imbalance is most severe.

EMG Downstream Performance

NeuroRVQ-EMG outperforms PhysioWave and TinyMyo across all four classification tasks by a wide margin, demonstrating that high-fidelity tokenization transfers effectively to muscular activity decoding.

BibTeX

@misc{neurorvq,
      title={NeuroRVQ: Multi-Scale Biosignal Tokenization for Generative Foundation Models},
      author={Konstantinos Barmpas and Na Lee and Dimitrios Chalatsis and William Raftery and Yannis Panagakis and Dimitrios A. Adamos and Nikolaos Laskaris and Alexandros Koliousis and Dario Farina and Stefanos Zafeiriou},
      year={2026},
      eprint={2510.13068},
      archivePrefix={arXiv},
      primaryClass={cs.LG},
      url={https://arxiv.org/abs/2510.13068},
}
